Engineered for compatibility with modern 13-pin systems (VG-99, GR-55) and vintage 24-pin platforms (GR-300, GR-700). Easily integrate and switch between 13-pin and 24-pin guitars to control multiple synth systems.
3 Different AMP-13P Model!
The 3 Models:
AMB-13P-1
Basic 13 Pin In/Out, Magnetic Out, Piezo Sum Out, and All Strings brought out 13 pin Break-Out-Panel to send the six guitar strings anywhere within the stereo field
• 13 Pin In/13 Pin Out
AMB-13P-2
Roland BC-13 Replacement with 2 VCA’s for Clean & Hex Outs 13 pin Break-Out-Panel as a Roland BC-13 Replacement with 2 VCA’a and outputs all six guitar strings.
• 24 Pin in/13 Pin Out
AMB-13P-3
Roland BC-13 Replacement with Dual Guitar Options and optional add on PC Boards and Optional cables! Useable with the floor or rack unit simultaneously.
• 13 Pin in/13 Pin Out & 24 Pin in/24 Pin Out
The AMB-13 Connects via 13-Pin & or 24-Pin
Here are the Fine Details
AMB-13P-1

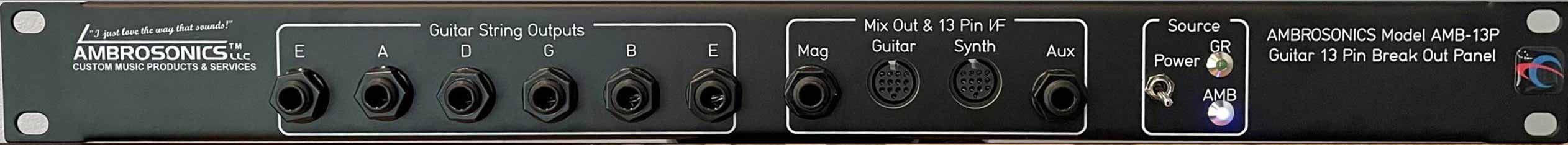

AMB-13P-1 Rackmount Break-Out-Panel
The AMB-13P-1 is the Basic 13 Pin In/Out, Magnetic Out, Piezo Sum Out, and All Strings brought out to ¼” outputs.
Designed to
Interface directly with PreSonus Quantum 2626, DAW’s, Mixing Boards & other Analog and Digital I/O Systems
Selectable Guitar Power Source, Standalone Ambrosonics power source OR use of the GR / Gi, Axon power sources
Single 1U Rack Mount Panel
Internal Adjustable Magnetic Output Level via Mag Output, Internal Adjustable Gain for Piezo/Magnetic Output Level via Aux Output
MSRP Web Price $399.00 $339.00
AMB-13P-2

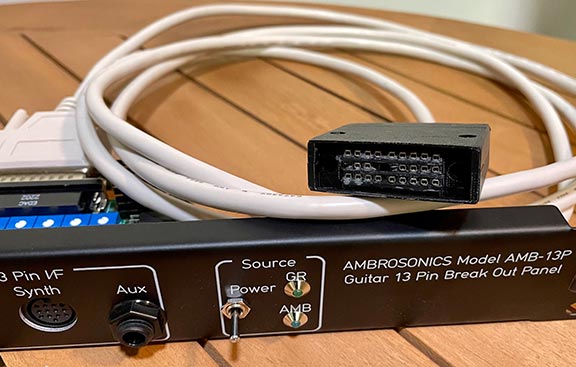

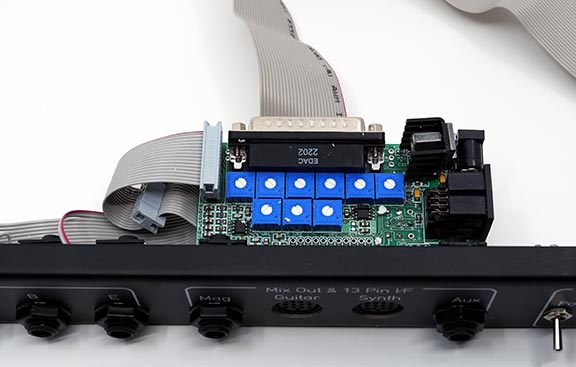

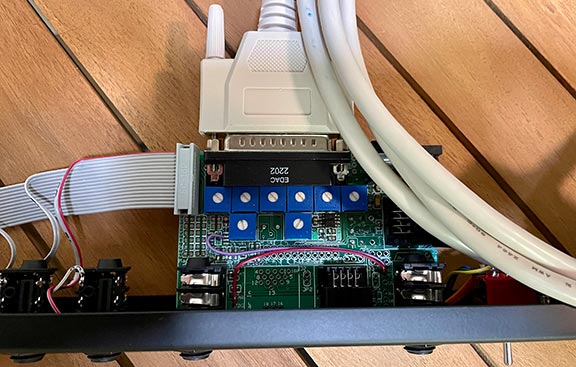

AMB-13P-2 Rackmount Break-Out-Panel with 24 Pin Adaptor
Cable
The AMB-13P-2 is the solution for replacing the obsolete Roland BC-13 Bus Controller for 24-Pin Roland Guitar Controllers like the G-808, G-700, G-303, G-707, and others. It provides Magnetic Out, HEX Distortion Out, Dual VCA for Clean Guitar Output and Hex Distorted Guitar Out on a SINGLE CABLE plus all strings are brought out to ¼” outputs.
It features all of what the AMB-13P-1 does plus: AUX Output provides HEX Distortion Output and is configurable for VCA1, Voltage Control Out, Voltage Control Input and TRS access Dual 13 Pin Outputs for driving 2 GR or Synth Interface Units from a single Vintage 24 Pin Guitar Input Dual Low Distortion VCA for 24 Pin Configuration allows Guitar Volume to operate Clean and Hex Distortion output from guitar on a SINGLE CABLE Split Option to run both 13 Pin AND 24 Pin Guitar setups simultaneously without changing connections
Internal Adjustable Magnetic Output Level via Mag Output
MSRP Web Price $579.00 $399.00
AMB-13P-3
AMB-13P-3
Rackmount Break-Out-Panel with 24 Pin Adaptor Cable
The AMB-13P-3 is the workhorse that does everything that the AMB-13P-1 & AMB-13P-2 does, with all kinds of options and special configurations for the most complicated synth controller setups! The AMB-13P-3 can also do 24-Pin to 13-Pin conversion via 24-Pin to 25-Pin cable using standard D-Shell female connectors (Included.)
The ability to run 13 Pin Guitars and control Vintage 24 Pin synthesizers like the GR-300, etc. Jumper Configurable use of Touch / Modulation Plates from Roland Guitar Pickup Touch Pad. Six Adjustable Output Level controls for each string for 24 Pin mode of operation (Dial in the exact tracking you may need) A 2U rack space when using other Ambrosonics Add On Boards (add-on boards are tiny and add to the top, bottom or both sides of the main PC Board) Optional Cable 1 and board, using a 24 Pin Guitar to AMB 13P Breakout Rack Panel Optional Cable 2 and board, using a 24 Pin AMB 13P to Vintage Synth Controller Unit
