Passive MT-16 and MT-16/32 Pickup Switching

Guitar & Bass Semi-Programmable Switching Systems

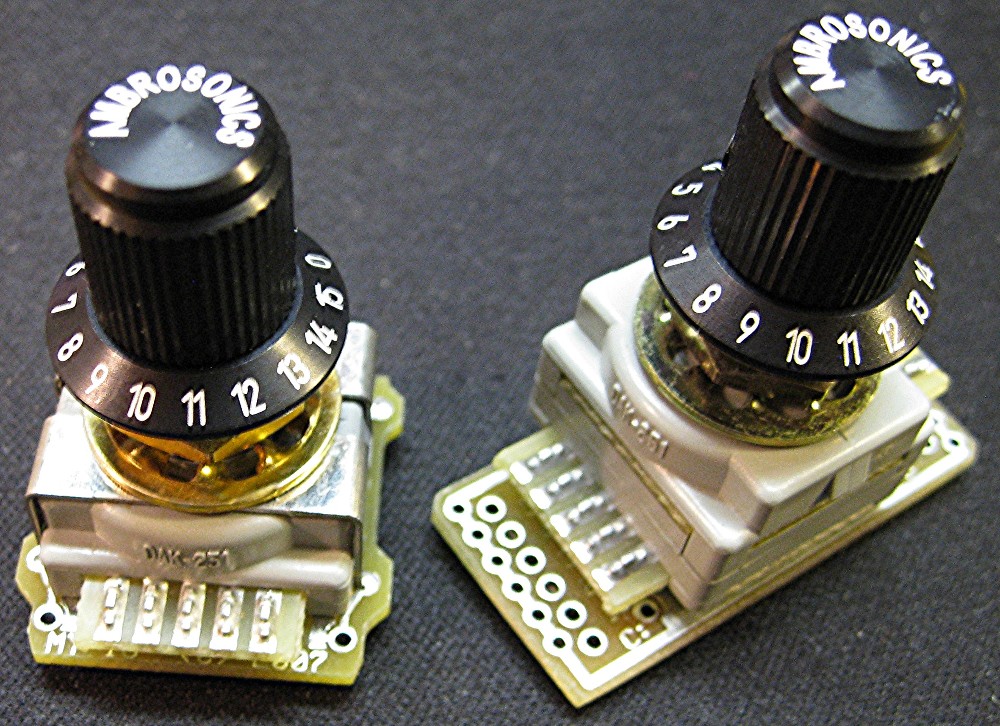

IMG_3363_Passive_Sw_Crop_1000pix Item #: AMBROSONICS, LLC Passive Switching Systems
Name: MT-16 and MT-16/32 Multi-Tonal Series of passive switching modules

Description:

Our Multi-Tonal Passive Switching Systems let you customize many pickup configurations. The MT-16 is setup for 4 pickup coil INPUTS with 1 blended master OUTPUT allowing 16 different passive pickup sounds. (Including all pickups off)

By adding a 4PDT Switch you can switch from a Humbucker sound to one of 15 different Single Coil sounds at a flip of a switch!

Using 4 different Capacitor values, the MT-16 can be wired to allow 16 different TONE Control Filters that will really let the tone freak in you…..to get out!

The MT-16/32 can be used as a Stereo version of the MT-16. The MT-16/32 can also be used as a MT-16 for 4 coils on its first set of poles and a LED pickup indicator on its second set of poles!

There are also many other applications that these passive, high quality switches can perform. These switches have 16 detent positions and come with the AMBROSONICS knob as shown.



Passive MT-16 Pickup Switching

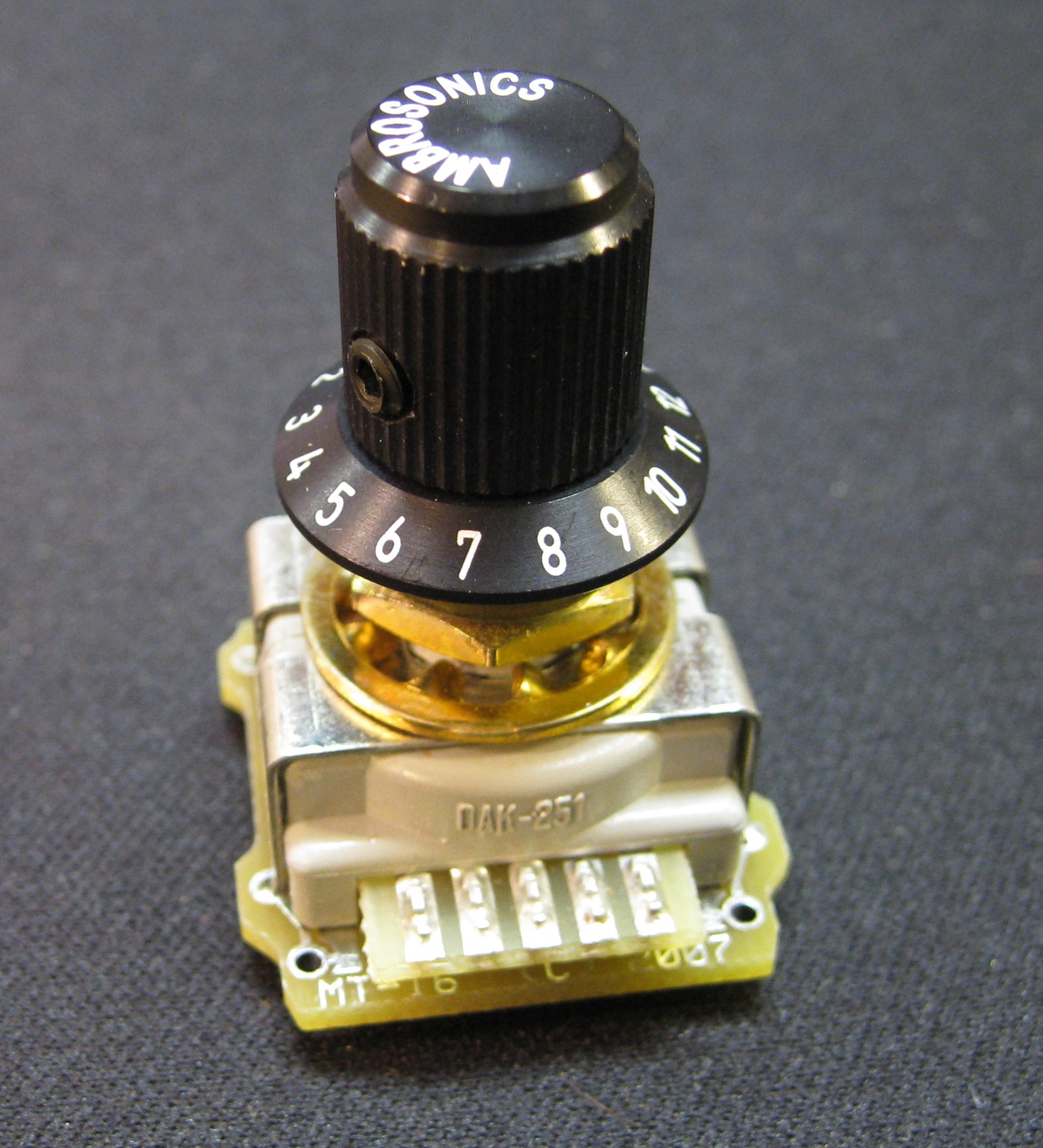

IMG_3321_Fast_MT16_Sw_Side Item #: MT-16 Passive Switching System with Knob
Name: MT-16 Multi-Tonal Passive Switch
Description: Our Multi-Tonal Passive Switching Systems let you customize many pickup configurations. The MT-16 is setup for 4 pickup coil INPUTS with 1 blended master OUTPUT allowing 16 different passive pickup sounds. (Including all pickups off)By adding a 4PDT Switch you can switch from a Humbucker sound to one of 15 different Single Coil sounds at a flip of a switch!

Using 4 different Capacitor values, the MT-16 can be wired to allow 16 different TONE Control Filters that will really let the tone freak in you…..to get out!

There are also many other applications that these passive, high quality switches can perform. The switch has 16 detent positions and come with the AMBROSONICS knob as shown.

MSR Price: $49.99      Web Price: $39.99

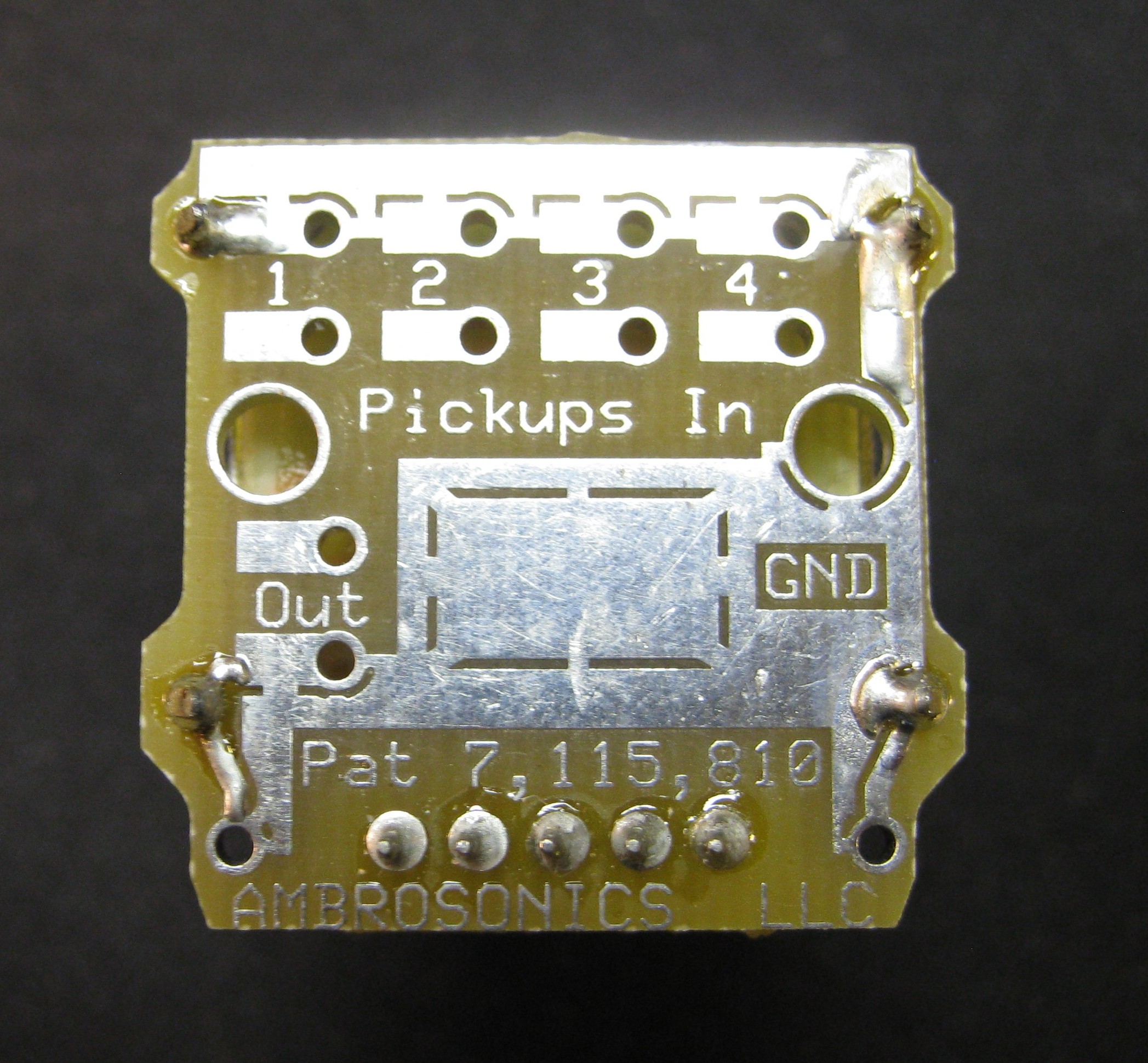

IMG_3330_Fast_MT16_Back Item #: MT-16 Passive Switching System with Knob
Name: MT-16 Multi-Tonal Passive Switch
Description: Back side PCB of the MT-16 Multi-Tonal passive switch.
MSR Price: $49.99      Web Price: $39.99

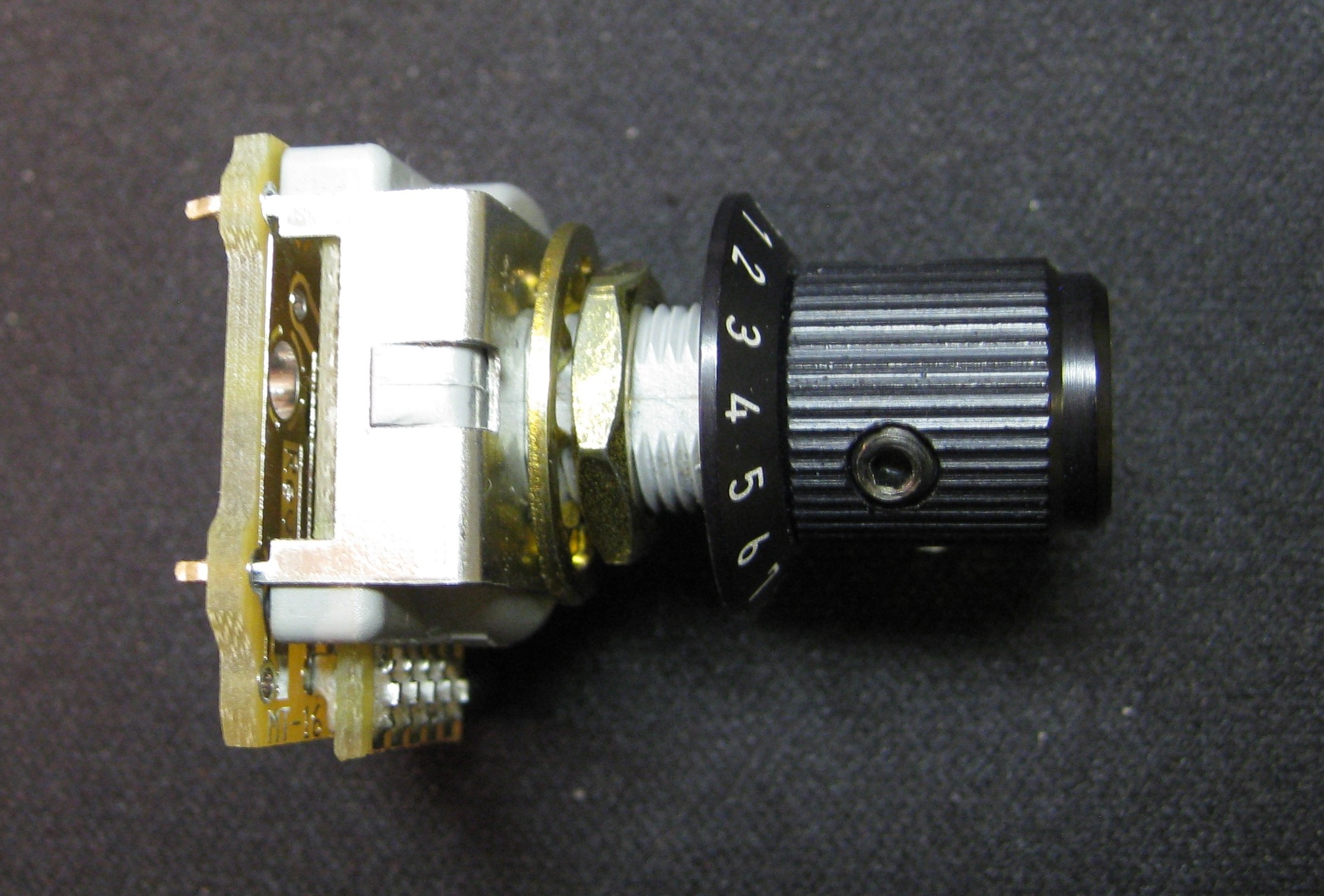

IMG_3325_Fast_MT16_Horz Item #: MT-16 Passive Switching System with Knob
Name: MT-16 Multi-Tonal Passive Switch
Description: Side view of the MT-16 Multi-Tonal passive switch.
MSR Price: $49.99      Web Price: $39.99



Passive MT-16/32 Pickup Switching

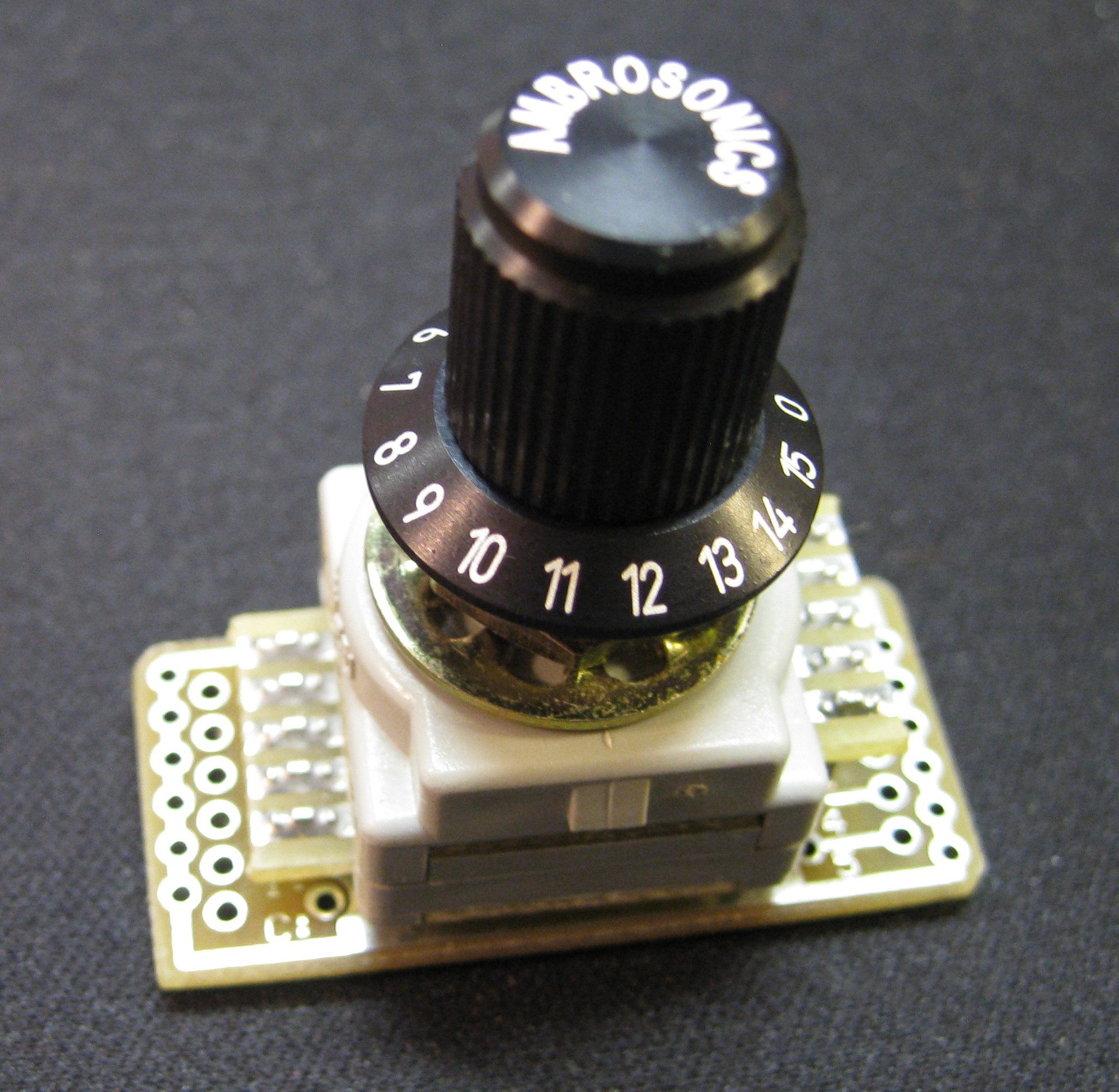

IMG_3336_Fast_MT16_32_LED_CTR Item #: MT-16/32 Dual Passive Switching System with Knob
Name: MT-16/32 Multi-Tonal Passive Switch
Description: Our Multi-Tonal Passive Switching Systems let you customize many pickup configurations. The MT-16/32 can be used as a Stereo version of the MT-16.The MT-16/32 can also be used as a MT-16 for 4 pickup coils on its first set of poles and a LED pickup indicator on its second set of poles!There are also many other applications that these passive, high quality switches can perform. These switches have 16 detent positions and come with the AMBROSONICS knob as shown.
MSR Price: $55.99      Web Price: $44.79

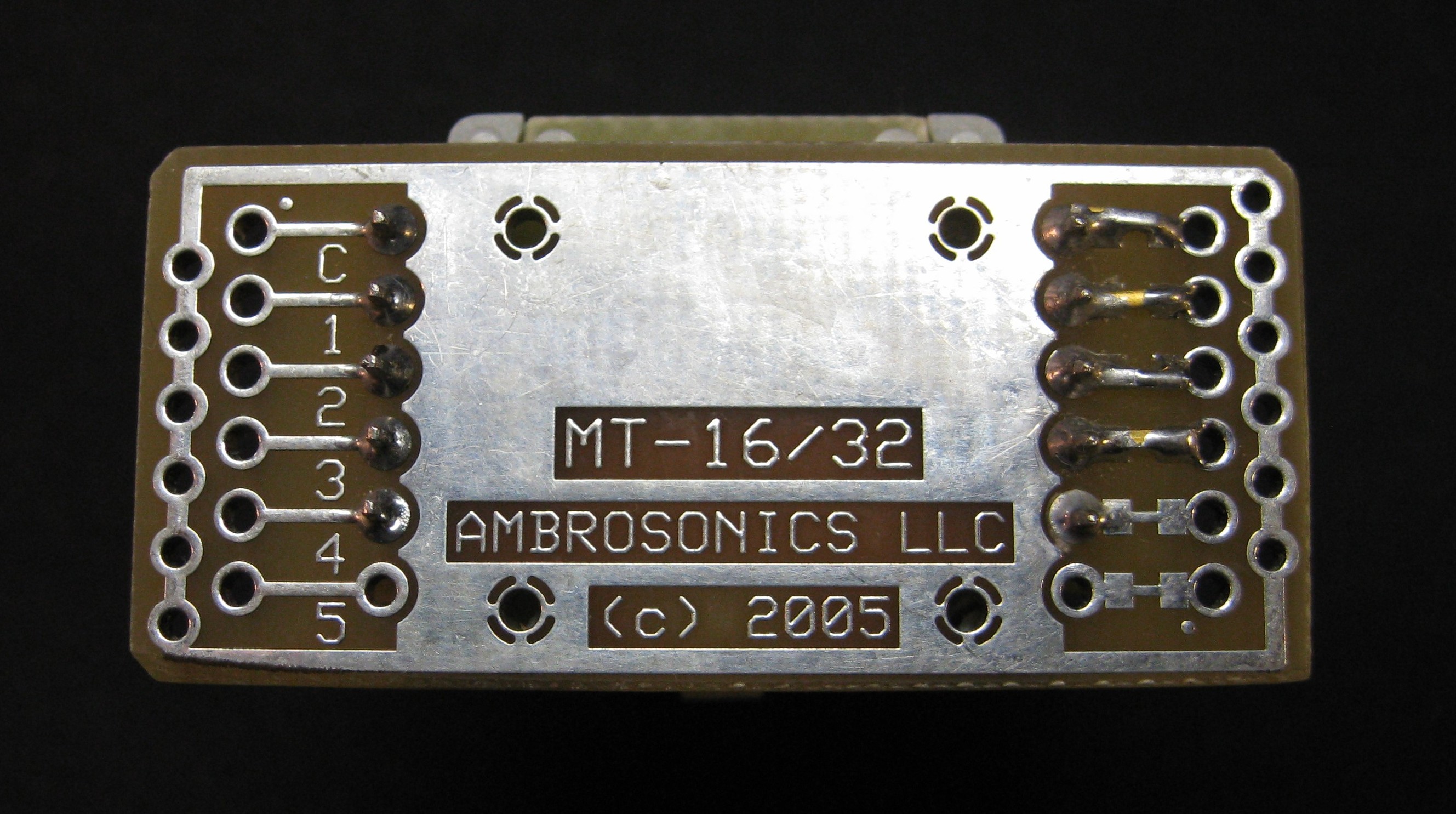

IMG_3345_Fast_MT16_32_LED_CTR_Back Item #: MT-16/32 Dual Passive Switching System with Knob
Name: MT-16/32 Multi-Tonal Passive Switch
Description: Back side PCB of the MT-16/32 Multi-Tonal passive switch.
MSR Price: $55.99      Web Price: $44.79

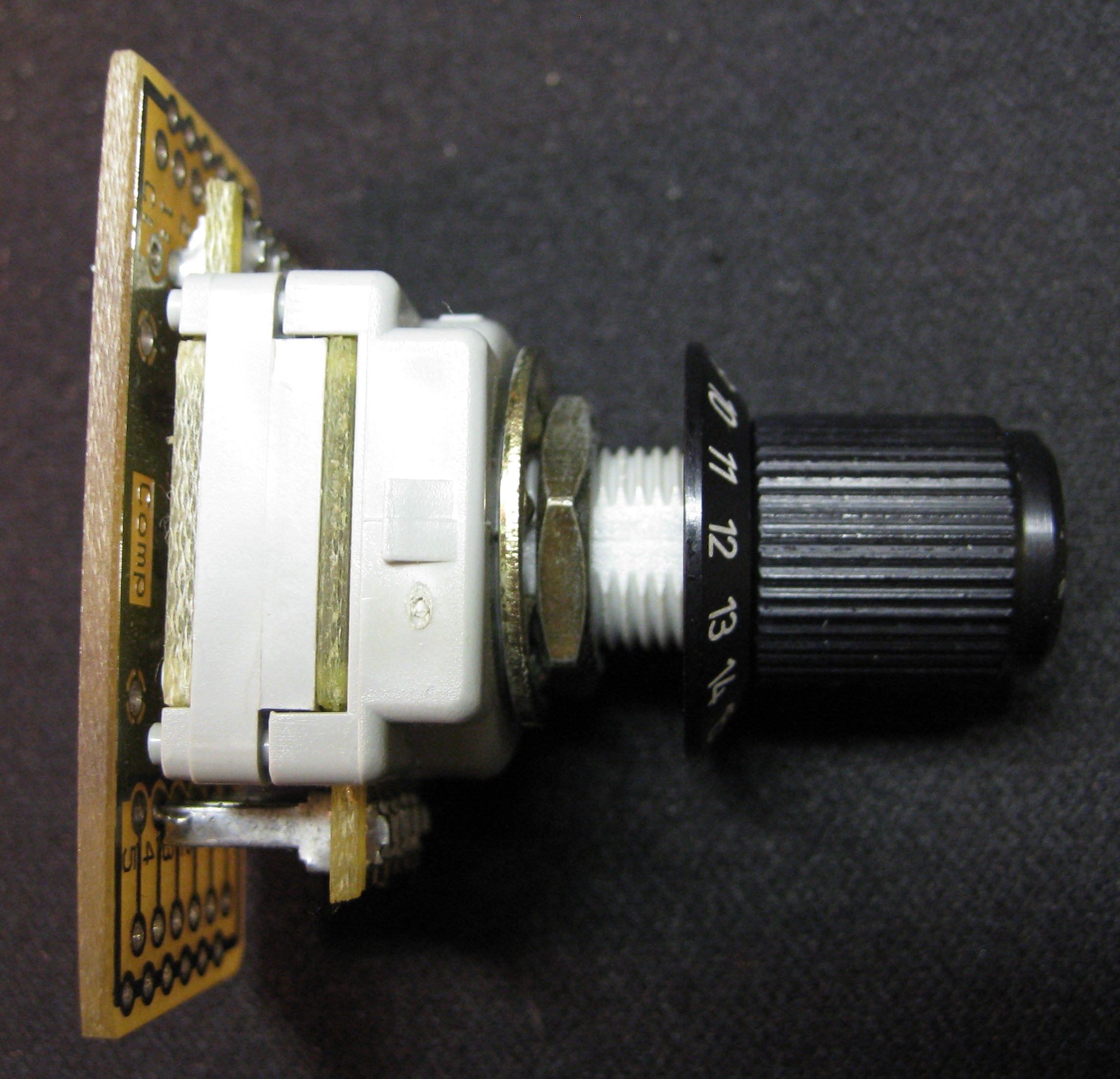

IMG_3341_Fast_MT16_32_LED_CTR_Horz Item #: MT-16/32 Dual Passive Switching System with Knob
Name: MT-16/32 Multi-Tonal Passive Switch
Description: Side view of the MT-16/32 Multi-Tonal passive switch.
MSR Price: $55.99      Web Price: $44.79
